MML-ST Series
MML-Standard

  • Compact design with a lens barrel diameter of 16~
  • Long-width design
  • Number of pixels:~410 thousand pixels Element size:1/2” or less

The MML~ST Series has, through combination with a 410 thousand pixels camera, renewed the design and manufacturing processes with high level optical capabilities.
Furthermore, compact models with a diameter from 16 and featuring long-depth design are available for installation into manufacturing equipment



WD40mm

*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.
Caution) The WD 40 mm series does not have a setting for the prism adapter option.

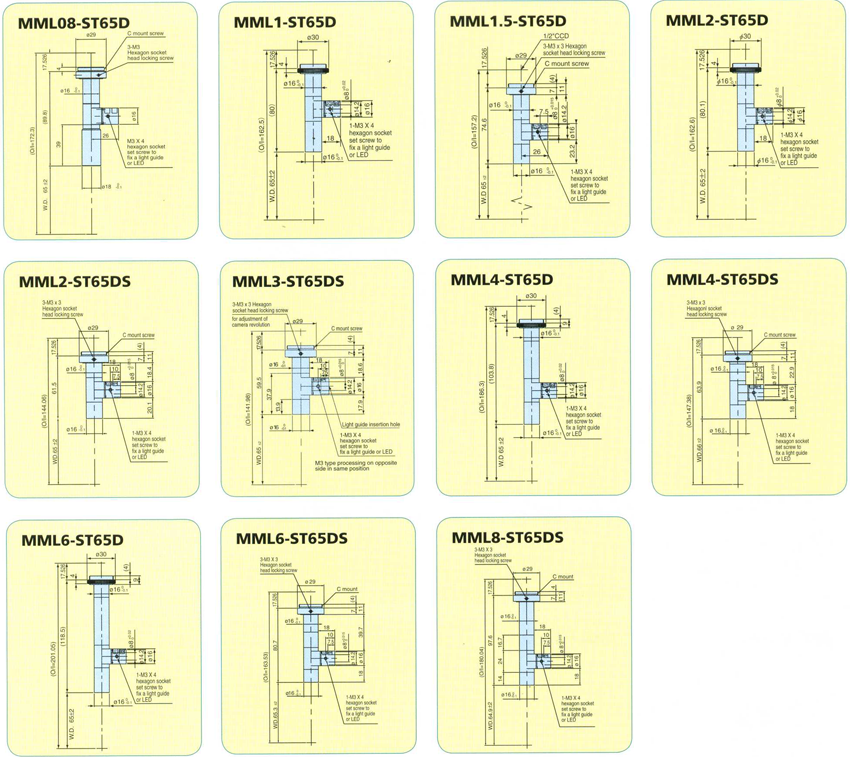

WD65mm


*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.




Optical Specifications for Machine
Types Recommended for Combination with the Rear Converter
 Caution) If Machines other than those recommended for combination are used, foreign objects and damage of the rear converter may be contained in the image. For this reason, do not use any machines other than the recommended types.


*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.

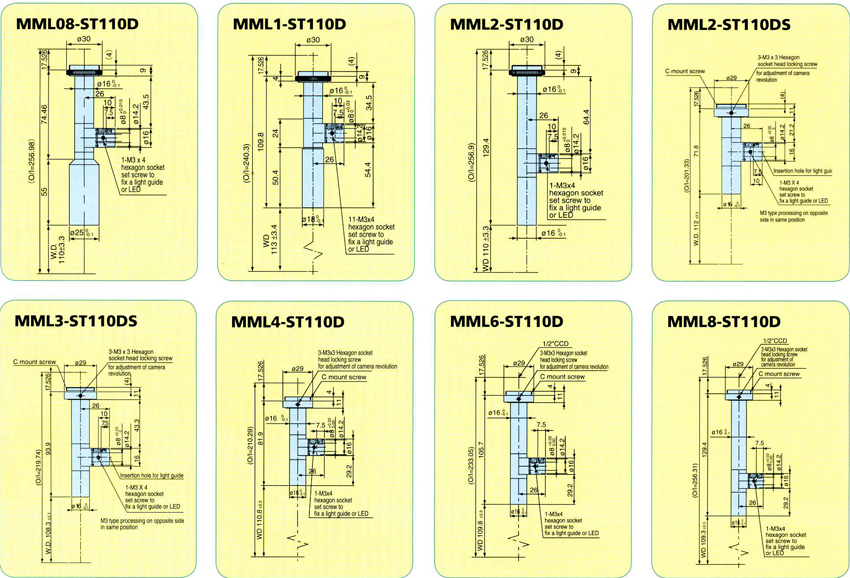

WD110mm








*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.



Caution) If Machines other than those recommended for combination are used, foreign objects and damage of the rear converter may be contained in the image. For this reason, do not use any machines other than the recommended types.



Long WD Series

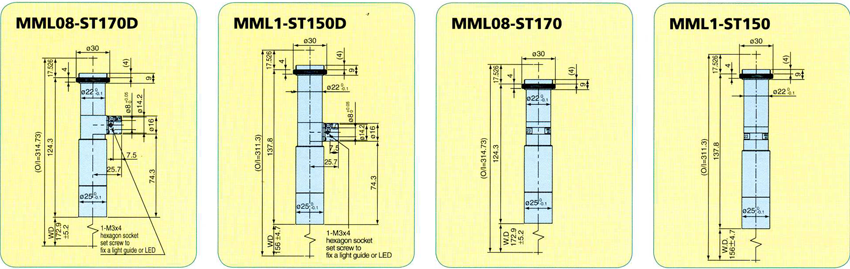

WD150mm


*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.

Optical Specifications for Machine
Types Recommended for Combination with the Rear Converter

 Caution) If Machines other than those recommended for combination are used, foreign objects and damage of the rear converter may be contained in the image. For this reason, do not use any machines other than the recommended types.



WD300mm

  • Magnification 1X
  • WD = 300mm
  • With variable aperture 22.7-C32
  • External diameter 27mm slim body

A super-long working distance lens that realizes a WD of 300mm with an optical magnification of 1X.
Improved ease of use with variable aperture.

Optical Specifications for Machine
Types Recommended for Combination with the Rear Converte		 Note: Combine each rear converter with the recommended models only.Otherwise, dust or scratch on the rear converter may from an image.

*Resolution values are for theoretical resolution at a wavelength of 550nm.
*Depth of field is calculated assuming a horizontal 320 TV resolution using a ½” CCD camera. (Permissible circle of confusion on the image-formation size:40 µm).
